Description
FEATURES

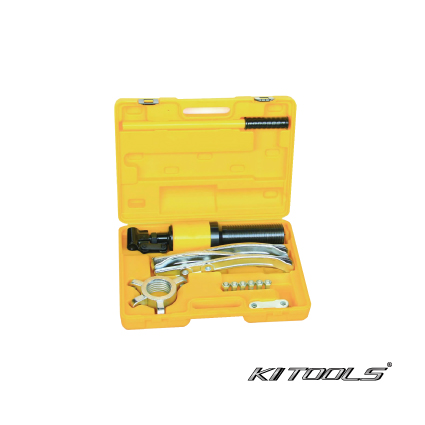

This tool are designed for removing a wide variety of gears, bearings, bushings, pulleys and other press-fitted parts.
- Use with 2 or 3 jaws.
- High-quality, forged steel jaws and crossheads provide superior reliability and service.
- Precise hydraulic control allows fast, efficient and safe pulling.
- High-force hydraulic system for effortless pulling of large components.
- More efficient pulling, as one man can do the job where manual pullers often require two operators.
- Spring-loaded live centering cone.
- Set contained with plastic carry case.
SPECIFICATIONS
KI-HPL5
- Output : 5 ton
- Spread : 50 – 200 mm
- Max reach : 140 mm
- Ram stroke : 50 mm
- Dimensions : (E) 45 x (F) 23 x (G) 106 x (A) 12.5 x (B) 22.5 x (C) 26 mm
- Weight : 7.6 kg
- Packing size : 420 x 290 x 90 mm
KI-HHL10
- Output : 10 ton
- Spread : 50 – 250 mm
- Max reach : 170 mm
- Ram stroke : 60 mm
- Dimensions : (E) 56 x (F) 26 x (G) 97 x (A) 14 x (B) 30 x (C) 30 mm
- Weight : 10.1 kg
- Packing size : 430 x 330 x 110 mm
KI-HHL20
- Output : 20 ton
- Spread : 100 – 350 mm
- Max reach : 205 mm
- Ram stroke : 70 mm
- Dimensions : (E) 78 x (F) 33 x (G) 105 x (A) 21 x (B) 33.5 x (C) 33 mm
- Weight : 18.6 kg
- Packing size : 440 x 350 x 130 mm
PACKING INFORMATION
- 1 SET
